OpenCV-Java #3 원 찾기



2번 동영상 코드에 원찾기 코드 추가

import org.opencv.core.*;
import org.opencv.highgui.HighGui;
import org.opencv.imgproc.Imgproc;
import org.opencv.videoio.VideoCapture;

class MyVideoTest {
    public void run() {
    	String filename = "WIN_20220603_16_47_52_Pro.mp4";
        VideoCapture capture = new VideoCapture(filename);
        if (!capture.isOpened()) {
            System.out.println("Unable to open this stream");
            System.exit(-1);
        }

        Mat frame = new Mat();
        Mat frame_gray = new Mat();

        while (capture.read(frame)) {
            if (frame.empty()) {
                break;
            }
            // Image processing start
            Imgproc.cvtColor(frame, frame_gray, Imgproc.COLOR_BGR2GRAY);
            //Blur
            Imgproc.medianBlur(frame_gray, frame_gray, 5);

            // HSV 이미지 만들기
            Mat frame_hsv = new Mat();
            Imgproc.cvtColor(frame, frame_hsv, Imgproc.COLOR_BGR2HSV);
            Imgproc.medianBlur(frame_hsv, frame_hsv, 5);

            Mat circles = new Mat();
            Imgproc.HoughCircles(frame_gray, circles, Imgproc.HOUGH_GRADIENT, 1.0,
            		(double)frame_gray.rows()/16, 	// change this value to detect circles with different distances to each other
            		100.0, 30.0, 165, 175); 		// change the last two parameters
                   		// (min_radius & max_radius) to detect larger circles
            for (int x = 0; x < circles.cols(); x++) {
            	double[] c = circles.get(0, x);
            	if(c != null) {
		            Point center = new Point(Math.round(c[0]), Math.round(c[1]));
		            //hsv
		            int i = (int) Math.round(c[0]);
		            int j = (int) Math.round(c[1]);
		            double[] data = frame_hsv.get(i,j);
		            //System.out.println(data.length);
		            if (data != null) {
		            	System.out.printf("(%d %d) => h:%.1f s:%.1f v:%.1f\n",i,j,
		                		frame_hsv.get(i,j)[0],frame_hsv.get(i,j)[1],frame_hsv.get(i,j)[2]);
                                // 중심점 x, y , HSV(H) , HSV(S), HSV(V)
		            }


		            // circle center
		            Imgproc.circle(frame, center, 1, new Scalar(0,255,255), 10, 8, 0 );
		            // circle outline
		            int radius = (int) Math.round(c[2]);
		            System.out.println(radius);
		            Imgproc.circle(frame, center, radius, new Scalar(0,0,255), 3, 8, 0 );
            	}
        	}
            // Image processing End
            HighGui.imshow("Frame", frame);

            int keyboard = HighGui.waitKey(30);
            if (keyboard == 'q' || keyboard == 27) {
                break;
            }
        }
        System.exit(0);
    }
}

public class opencv_run {
    public static void main(String[] args) {
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);
        new MyVideoTest().run();
    }
}







https://docs.opencv.org/4.x/d4/d70/tutorial_hough_circle.html



OpenCV: Hough Circle Transform

Prev Tutorial: Hough Line Transform Next Tutorial: Remapping Original author Ana Huamán Compatibility OpenCV >= 3.0 Goal In this tutorial you will learn how to: Use the OpenCV function HoughCircles() to detect circles in an image. Theory Hough Circle Tran

docs.opencv.org

public class opencv_run {
	public static void main(String[] args) {
		// opencv 라이브러리를 읽어오기
		System.loadLibrary(Core.NATIVE_LIBRARY_NAME);
  	    // 원본이미지 파일 읽어오기
		String default_file = "WIN_20220527_09_35_04_Pro.jpg";
        String filename = ((args.length > 0) ? args[0] : default_file);
        // Load an image
        Mat frame = Imgcodecs.imread(filename, Imgcodecs.IMREAD_COLOR);
        // Check if image is loaded fine
        if( frame.empty() ) {
            System.out.println("Error opening image!");
            System.out.println("Program Arguments: [image_name -- default "
                    + default_file +"] \n");
            System.exit(-1);
        }

		 // 이미지를 Gray로 바꾸기
		 Mat frame_gray = new Mat();
		 Imgproc.cvtColor(frame, frame_gray, Imgproc.COLOR_BGR2GRAY);
		 //Blur
		 Imgproc.medianBlur(frame_gray, frame_gray, 5);

		 // HSV 이미지 만들기
		 Mat frame_hsv = new Mat();
		 Imgproc.cvtColor(frame, frame_hsv, Imgproc.COLOR_BGR2HSV);
		 Imgproc.medianBlur(frame_hsv, frame_hsv, 5);

        Mat circles = new Mat();
        Imgproc.HoughCircles(frame_gray, circles, Imgproc.HOUGH_GRADIENT, 1.0,
        		(double)frame_gray.rows()/16, 	// change this value to detect circles with different distances to each other
                100.0, 30.0, 160, 190); 		// change the last two parameters
                		// (min_radius & max_radius) to detect larger circles
        for (int x = 0; x < circles.cols(); x++) {
            double[] c = circles.get(0, x);
            Point center = new Point(Math.round(c[0]), Math.round(c[1]));
            //hsv
            int i = (int) Math.round(c[0]);
            int j = (int) Math.round(c[1]);
            double[] data = frame_hsv.get(i,j);
            //System.out.println(data.length);
            System.out.printf("%d %d %.1f %.1f %.1f\n",i,j,
            		frame_hsv.get(i,j)[0],frame_hsv.get(i,j)[1],frame_hsv.get(i,j)[2]);
            // 중심점 x, y , HSV(H) , HSV(S), HSV(V)

            // circle center
            Imgproc.circle(frame, center, 1, new Scalar(0,255,255), 10, 8, 0 );
            // circle outline
            int radius = (int) Math.round(c[2]);
            System.out.println(radius);
            Imgproc.circle(frame, center, radius, new Scalar(0,0,255), 3, 8, 0 );
        }

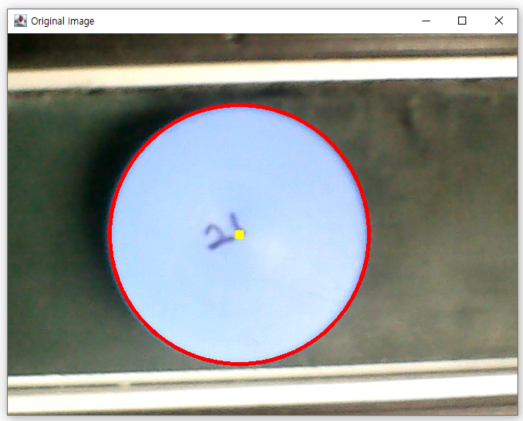

		 // 이미지 결과 출력
		 HighGui.imshow("Original Image", frame);
		 HighGui.waitKey(0);
		 System.exit(0);
	}
}
