08-1. 아기상어 + LED깜빡이기

#define NOTE_C4  262
#define NOTE_D4  294
#define NOTE_E4  330
#define NOTE_F4  349
#define NOTE_G4  392
#define NOTE_A4  440

#define PIEZO_PIN 2

int ledArr[] = {11,10,9,3};
int ledSize = sizeof(ledArr)/sizeof(int);

//notes in the melody:
int melody[] = {
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_E4,
  0,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_E4,
  0,
  NOTE_A4, NOTE_G4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
  NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_E4,
};

// note durations: 4 = quarter note, 8 = eighth note, etc
int noteDurations[] = {
  2, 2, 4, 4, 4, 8, 4, 8, 4,
  4, 4, 4, 4, 4, 8, 4, 8, 4,
  4, 4, 4, 4, 4, 8, 4, 8, 4, 4, 4, 2,
  2,
  2, 2, 4, 4, 4, 8, 4, 8, 4,
  4, 4, 4, 4, 4, 8, 4, 8, 4,
  4, 4, 4, 4, 4, 8, 4, 8, 4, 4, 4, 2,
  2,
  2, 2, 4, 4, 4, 8, 4, 8, 4,
  4, 4, 4, 4, 4, 8, 4, 8, 4,
  4, 4, 4, 4, 4, 8, 4, 8, 4, 4, 4, 2,
};

void setup(){
  for(int i=0; i<ledSize; i++)
    pinMode(ledArr[i], OUTPUT);

  for (int thisNote = 0; thisNote < sizeof(melody) / sizeof(melody[0]); thisNote++) {
    int noteDuration = 1000/noteDurations[thisNote];
    tone(PIEZO_PIN, melody[thisNote],noteDuration);
    ledON(melody[thisNote]);

    int pauseBetweenNotes = noteDuration * 1.30;
    delay(pauseBetweenNotes);

    noTone(PIEZO_PIN);
    ledOFF();
  }
}

void loop(){}

void ledON(int piezo_melody)
{
  if((piezo_melody == NOTE_E4) || (piezo_melody == NOTE_G4))
   digitalWrite(ledArr[0],HIGH);
  if(piezo_melody == NOTE_C4)
   digitalWrite(ledArr[1],HIGH);
  if((piezo_melody == NOTE_A4) || piezo_melody == NOTE_D4)
   digitalWrite(ledArr[2],HIGH);
  if(piezo_melody == NOTE_F4)
   digitalWrite(ledArr[3],HIGH);
}

void ledOFF()
{
  for(int i=0; i<ledSize; i++){
    digitalWrite(ledArr[i], LOW);
  }
}



08. 학교종이 땡땡땡 + LED 깜빡이기

#define NOTE_C4  262
#define NOTE_D4  294
#define NOTE_E4  330
#define NOTE_G4  392
#define NOTE_A4  440

#define PIEZO_PIN 2

int ledArr[] = {11,10,9,3};
int ledSize = sizeof(ledArr)/sizeof(int);

int melody[] = {
NOTE_G4, NOTE_G4, NOTE_A4, NOTE_A4,
NOTE_G4, NOTE_G4, NOTE_E4,
NOTE_G4, NOTE_G4, NOTE_E4, NOTE_E4,
NOTE_D4, 0,
NOTE_G4, NOTE_G4, NOTE_A4, NOTE_A4,
NOTE_G4, NOTE_G4, NOTE_E4,
NOTE_G4, NOTE_E4, NOTE_D4, NOTE_E4,
NOTE_C4,0};

int noteDurations[] = {
1,1,1,1,
1,1,2,
1,1,1,1,
3,1,
1,1,1,1,
1,1,2,
1,1,1,1,
3,1};

void setup() {
  for(int i=0; i<ledSize; i++)
    pinMode(ledArr[i], OUTPUT);

  for (int thisNote = 0; thisNote < 26; thisNote++) {
    int noteDuration = 250 * noteDurations[thisNote];
    tone(PIEZO_PIN, melody[thisNote],noteDuration);
    ledON(melody[thisNote]);

    int pauseBetweenNotes = noteDuration * 1.30;
    delay(pauseBetweenNotes);
    noTone(PIEZO_PIN);
    ledOFF();
  }
}
void loop() {}

void ledON(int piezo_melody)
{
  if((piezo_melody == NOTE_C4) || (piezo_melody == NOTE_D4))
   digitalWrite(ledArr[0],HIGH);
  if(piezo_melody == NOTE_E4)
   digitalWrite(ledArr[1],HIGH);
  if(piezo_melody == NOTE_G4)
   digitalWrite(ledArr[2],HIGH);
  if(piezo_melody == NOTE_A4)
   digitalWrite(ledArr[3],HIGH);
}

void ledOFF()
{
  for(int i=0; i<ledSize; i++){
    digitalWrite(ledArr[i], LOW);
  }
}

07. 센서가 어두워지면 LED 깜빡임 순서 바뀜 + RGB LED 색깔 바뀜

#define PIEZOPIN 2

int ledArr[] = {11,10,9,3}; // 사용하는 LED번호
int rgbArr[] = {A5,A3,A4};  // R(A5) G(A3) B(A4)
int delayTime = 200;      // 깜빡임시간 지정(1초 =1000)

int ledCount = 0;
int rgbCount = 0;
int modeCount = 0;

int ledsize = sizeof(ledArr)/ sizeof(int);
int rgbsize = sizeof(rgbArr)/ sizeof(int);

int flag = 0;
int THR = 100;

unsigned long previousTimeLed = millis();
long timeIntervalLed = 200;



void setup()
{
  for(int i=0; i<ledsize; i++)
    pinMode(ledArr[i], OUTPUT);
  for(int i=0; i<rgbsize; i++){
    pinMode(rgbArr[i], OUTPUT);
    digitalWrite(rgbArr[i], HIGH);
  }
  pinMode(PIEZOPIN, OUTPUT);
  pinMode(A2,INPUT);
  Serial.begin(9600);
}

void rgb_led(int n)
{
  if(rgbCount %2 == 1){
    if(n == 0){  // r+b = magenta
      digitalWrite(rgbArr[0],LOW);
      digitalWrite(rgbArr[1],HIGH);
      digitalWrite(rgbArr[2],LOW);
    }
    else if(n == 1){ //red
      digitalWrite(rgbArr[0],LOW);
      digitalWrite(rgbArr[1],HIGH);
      digitalWrite(rgbArr[2],HIGH);
    }
    else if(n == 2){ // blue
      digitalWrite(rgbArr[0],HIGH);
      digitalWrite(rgbArr[1],HIGH);
      digitalWrite(rgbArr[2],LOW);
    }
    else if(n == 3){ // green
      digitalWrite(rgbArr[0],HIGH);
      digitalWrite(rgbArr[1],LOW);
      digitalWrite(rgbArr[2],HIGH);
    }
    else if(n == 4){
      digitalWrite(rgbArr[0],LOW);
      digitalWrite(rgbArr[1],LOW);
      digitalWrite(rgbArr[2],LOW);
    }
  }
  else{
    digitalWrite(rgbArr[0],HIGH);
    digitalWrite(rgbArr[1],HIGH);
    digitalWrite(rgbArr[2],HIGH);
  }
  rgbCount ++;
}

void led_off()
{
  for(int i=0; i<ledsize; i++)
      digitalWrite(ledArr[i], LOW);
}

void led_blink()
{
  if(ledCount%2 == 1){
    for(int i=0; i<ledsize; i++){
      digitalWrite(ledArr[i], HIGH);
    }
  }
  else{
    for(int i=0; i<ledsize; i++){
      digitalWrite(ledArr[i], LOW);
    }
  }
ledCount++;
}

void led_up2dn()
{
  int n = ledCount % (ledsize+1);
  if(n==0){
    for(int i=0; i<ledsize; i++)
      digitalWrite(ledArr[i], LOW);
  }
  else{
    for(int i=0; i<ledsize; i++){
      if (i == (n-1))
        digitalWrite(ledArr[i], HIGH);
      else
        digitalWrite(ledArr[i], LOW);
    }
  }
  ledCount++;
}

void led_dn2up()
{
  int n = ledCount % (ledsize+1);
  if(n==0){
    for(int i=0; i<ledsize; i++)
      digitalWrite(ledArr[i], LOW);
  }
  else{
    for(int i=ledsize-1; i>=0; i--){
      if (i == (ledsize-n))
        digitalWrite(ledArr[i], HIGH);
      else
        digitalWrite(ledArr[i], LOW);
    }
  }
 ledCount++;
}

void led_weighted_up2dn()
{
  int n = ledCount % (ledsize+1);
  if (n == 0)
    led_off();
  else
    digitalWrite(ledArr[n-1], HIGH);
  ledCount++;
}

void led_weighted_dn2up()
{
  int n = ledCount % (ledsize+1);
  if (n == 0)
    led_off();
  else
    digitalWrite(ledArr[ledsize-n], HIGH);
  ledCount++;
}

void led_mode(int case_num)
{
  case_num = case_num % 5;
  if(case_num == 0){
    led_blink();
  }
  else if(case_num ==1){
    led_up2dn();
  }
  else if(case_num ==2){
    led_dn2up();
  }
  else if(case_num ==3){
    led_weighted_up2dn();
  }
  else{
    led_weighted_dn2up();
  }
  rgb_led(case_num);
}

void printValues(int sensorValue)
{
  Serial.print("flag : ");
  Serial.print(flag);
  Serial.print("  modeCount : ");
  Serial.print(modeCount);
  Serial.print("  sensorValue : ");
  Serial.println(sensorValue);
}

void loop()
{
  unsigned long currentTime = millis();
  int inputValue = analogRead(A2);
  printValues(inputValue);
  if (inputValue <= THR) {
    if (flag == 0){
      flag = 1;
      modeCount++;
      ledCount = 0;
      printValues(inputValue);
    }
  }
  else {
    if (flag == 1) {
      flag = 0;
      printValues(inputValue);
    }
  }
  // task 1
  if(currentTime - previousTimeLed > delayTime) {
    previousTimeLed = currentTime;
    led_mode(modeCount);
  }
  delay(100);
}



06. LED + RGB LED 번갈아 깜빡이기

int ledArr[] = {11,10,9,3}; // 사용하는 LED번호
int rgbArr[] = {A5,A3,A4};  // R(A5) G(A3) B(A4)
int delayTime = 200;      // 깜빡임시간 지정(1초 =1000)

int redPin = A5;
int bluePin = A4;
int greenPin = A3;

int ledCount = 0;
int rgbCount = 0;

int ledsize = sizeof(ledArr)/ sizeof(int);
int rgbsize = sizeof(rgbArr)/ sizeof(int);
void setup()
{
  for(int i=0; i<ledsize; i++)
  	pinMode(ledArr[i], OUTPUT);
  for(int i=0; i<ledsize; i++){
  	pinMode(rgbArr[i], OUTPUT);
    digitalWrite(rgbArr[i], HIGH);
  }
}

void rgb_led()
{
  int n = rgbCount%6;
  if(n == 0){  // off
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,HIGH);
  }
  else if(n == 1){ //red
    digitalWrite(redPin,LOW);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,HIGH);
  }
  else if(n == 2){ // blue
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,LOW);
  }
  else if(n == 3){ // green
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,LOW);
    digitalWrite(bluePin,HIGH);
  }
  else if(n == 4){
    digitalWrite(redPin,LOW);
    digitalWrite(greenPin,LOW);
    digitalWrite(bluePin,LOW);
  }
  else{
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,HIGH);
  }
  rgbCount++;
}

void led_off()
{
  for(int i=0; i<ledsize; i++)
      digitalWrite(ledArr[i], LOW);
}

void led_blink(int n)
{
  if(n%2 == 0){
    for(int i=0; i<ledsize; i++){
      digitalWrite(ledArr[i], HIGH);
    }
  }
  else{
    for(int i=0; i<ledsize; i++){
      digitalWrite(ledArr[i], LOW);
    }
  }
}

void led_up2dn(int n)
{
  n = n % (ledsize+1);
  for(int i =0; i<ledsize; i++){
    if (i == n)
      digitalWrite(ledArr[i], HIGH);
    else
      digitalWrite(ledArr[i], LOW);
  }
}

void led_dn2up(int n)
{
  n = n % (ledsize+1);
  for(int i=ledsize-1; i>=0; i--){
    if (i == (ledsize-1-n))
      digitalWrite(ledArr[i], HIGH);
    else
      digitalWrite(ledArr[i], LOW);
  }
}

void led_weighted_up2dn(int n)
{
  n = n % (ledsize+1);
  if (n == ledsize)
    led_off();
  else
  	digitalWrite(ledArr[n], HIGH);
}

void led_weighted_dn2up(int n)
{
  n = n % (ledsize+1);
  if (n == ledsize)
    led_off();
  else
  	digitalWrite(ledArr[ledsize-1-n], HIGH);
}

void loop()
{
  for(int i=0; i<4; i++){
  	led_blink(ledCount);
    rgb_led();
  	delay(delayTime);
    ledCount++;
  }
  ledCount = 0;
  for(int i=0; i<ledsize+1; i++){
    led_up2dn(ledCount);
    rgb_led();
    delay(delayTime);
    ledCount ++;
  }
  for(int i=0; i<ledsize+1; i++){
    led_dn2up(ledCount);
    rgb_led();
    delay(delayTime);
    ledCount ++;
  }
  for(int i=0; i<ledsize+1; i++){
    led_weighted_up2dn(ledCount);
    rgb_led();
    delay(delayTime);
    ledCount ++;
  }
  for(int i=0; i<ledsize+1; i++){
    led_weighted_dn2up(ledCount);
    rgb_led();
    delay(delayTime);
    ledCount ++;
  }
}

05-1. 포토센서값에 따라 멜로디 번갈아 재생

#define NOTE_C4  262
#define NOTE_D4  294
#define NOTE_E4  330
#define NOTE_F4  349
#define NOTE_G4  392
#define NOTE_A4  440
#define NOTE_C7  2093
#define NOTE_D7  2349
#define NOTE_E7  2637
#define NOTE_F7  2794
#define NOTE_G7  3136
#define NOTE_A7  3520
#define NOTE_B7  3951

#define PIEZOPIN 2

int THR = 100;

int flag = 0;
int ledCount = 0;
int delayTime = 200;      // 깜빡임시간 지정(1초 =1000)

int ledsize = sizeof(ledArr)/ sizeof(int);
int rgbsize = sizeof(rgbArr)/ sizeof(int);
void setup()
{
  pinMode(PIEZOPIN, OUTPUT);
  pinMode(A2,INPUT);
  Serial.begin(9600);
}

void melody_1()
{
  //음계 데이터 (24개)
  int melody[] = {NOTE_G7,NOTE_G7,NOTE_A7,NOTE_A7,NOTE_G7,
                  NOTE_G7,NOTE_E7,NOTE_G7,NOTE_G7,NOTE_E7,
                  NOTE_E7,NOTE_D7,NOTE_G7,NOTE_G7,NOTE_A7,
                  NOTE_A7,NOTE_G7,NOTE_G7,NOTE_E7,NOTE_G7,
                  NOTE_E7,NOTE_D7,NOTE_E7,NOTE_C7};
  //음의길이, 4:4분음표, 2:2분음표
  int noteDurations[] = {4,4,4,4,4,4,2,4,4,4,4,1,4,4,4,4,4,4,2,4,4,4,4,1};


  for (int thisNote = 0; thisNote < 24; thisNote++)
  {
    int noteDuration = 1000 / noteDurations[thisNote];
    tone(PIEZOPIN, melody[thisNote], noteDuration); //소리를 낸다.
    int pauseBetweenNotes = noteDuration * 1.30;      //delay 계산식
    delay(pauseBetweenNotes);                         //delay
    noTone(PIEZOPIN);                               //대상핀 출력 중단
  }
}



char notes[] = "ccggaag ffeeddc ggffeed ggffeed ccggaag ffeeddc ";
int beats[] = { 1, 1, 1, 1, 1, 1, 2, 1, 1, 1, 1, 1, 1, 2, 4 };
int tempo = 300;

void playTone(int tone, int duration) {
  for (long i = 0; i < duration * 1000L; i += tone * 2) {
    digitalWrite(PIEZOPIN, HIGH);
    delayMicroseconds(tone);
    digitalWrite(PIEZOPIN, LOW);
    delayMicroseconds(tone);
  }
}

void playNote(char note, int duration) {
  char names[] = { 'c', 'd', 'e', 'f', 'g', 'a', 'b', 'C' };
  int tones[] = { 1915, 1700, 1519, 1432, 1275, 1136, 1014, 956 };

  for (int i = 0; i < 8; i++) {
    if (names[i] == note) {
      playTone(tones[i], duration);
    }
  }
}

void melody_2() {
  int length = 15;
  for (int i = 0; i < length; i++) {
    if (notes[i] == ' ') {
      delay(beats[i] * tempo);
    } else {
      playNote(notes[i], beats[i] * tempo);
    }
    delay(tempo / 2);
  }
}

void melody_3(){
  //notes in the melody:
  int melody_3[] = {
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_E4,
    0,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_E4,
    0,
    NOTE_A4, NOTE_G4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4,
    NOTE_C4, NOTE_D4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_F4, NOTE_E4,
  };

  // note durations: 4 = quarter note, 8 = eighth note, etc
  int noteDurations_3[] = {
    2, 2, 4, 4, 4, 8, 4, 8, 4,
    4, 4, 4, 4, 4, 8, 4, 8, 4,
    4, 4, 4, 4, 4, 8, 4, 8, 4, 4, 4, 2,
    2,
    2, 2, 4, 4, 4, 8, 4, 8, 4,
    4, 4, 4, 4, 4, 8, 4, 8, 4,
    4, 4, 4, 4, 4, 8, 4, 8, 4, 4, 4, 2,
    2,
    2, 2, 4, 4, 4, 8, 4, 8, 4,
    4, 4, 4, 4, 4, 8, 4, 8, 4,
    4, 4, 4, 4, 4, 8, 4, 8, 4, 4, 4, 2,
  };
  for (int thisNote = 0; thisNote < sizeof(melody_3) / sizeof(melody_3[0]); thisNote++) {
    int noteDuration = 1000/noteDurations_3[thisNote];
    tone(PIEZOPIN, melody_3[thisNote],noteDuration);

    int pauseBetweenNotes = noteDuration * 1.30;
    delay(pauseBetweenNotes);

    noTone(PIEZOPIN);
  }
}

void loop()
{
  int inputValue = analogRead(A2);
  Serial.print("Sensor : ");
  Serial.print(inputValue);
  if(inputValue <= THR){
    melody_2();
  }
  else{
    noTone(PIEZOPIN);
    Serial.println("");
  }
  if (inputValue <= THR) {
    if (flag == 0){
      flag = 1;
      ledCount = ledCount % 3;
      if(ledCount == 0){
        Serial.println(" => Melody #1");
        melody_1();
      }
      if(ledCount == 1){
        Serial.println(" => Melody #2");
        melody_2();
      }
      if(ledCount == 2){
        Serial.println(" => Melody #3");
        melody_3();
      }
      ledCount++;
    }
  }
  else {
    if (flag == 1) {
      flag = 0;
    }
  }
  delay(100);
}



05. 포토센서값에 따라 RGB LED 색상변경

int redPin = A5;
int bluePin = A4;
int greenPin = A3;

int ledArr[] = {11,10,9,3}; // 사용하는 LED번호
int ledsize = sizeof(ledArr)/ sizeof(int);


void setup()
{
  for(int i=0; i<ledsize; i++)
  	pinMode(ledArr[i], OUTPUT);

  pinMode(A2,INPUT);
  pinMode(redPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  Serial.begin(9600);
}

void rgb_led(int level)
{
  if(level == 0){  // off
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,HIGH);
  }
  else if(level == 1){ //red
    digitalWrite(redPin,LOW);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,HIGH);
  }
  else if(level == 2){ // blue
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,HIGH);
    digitalWrite(bluePin,LOW);
  }
  else if(level == 3){ // green
    digitalWrite(redPin,HIGH);
    digitalWrite(greenPin,LOW);
    digitalWrite(bluePin,HIGH);
  }
  else if(level == 4){
    digitalWrite(redPin,LOW);
    digitalWrite(greenPin,LOW);
    digitalWrite(bluePin,HIGH);
  }
  else{
    digitalWrite(redPin,LOW);
    digitalWrite(greenPin,LOW);
    digitalWrite(bluePin,LOW);
  }
}


void loop()
{
  int inputValue = analogRead(A2);
  int level = map(inputValue, 0, 250, 0, 4);

  Serial.print("Sensor : ");
  Serial.print(inputValue);
  Serial.print(" level : ");
  Serial.println(level);
  rgb_led(level);
}



04. 밝기값이 어두워지면 LED4개가 켜짐

int THR = 100;              // 이부분 숫자 변경
int ledArr[] = {11,10,9,3}; // 사용하는 LED번호
int ledsize = sizeof(ledArr)/ sizeof(int);

void setup()
{
  for(int i=0; i<ledsize; i++)
  	pinMode(ledArr[i], OUTPUT);
  pinMode(A2,INPUT);
  Serial.begin(9600);
}

void loop()
{
  int inputValue = analogRead(A2);
  Serial.print("Sensor : ");
  Serial.print(inputValue);
  if(inputValue <= THR){
    for(int i=0; i<ledsize; i++)
      digitalWrite(ledArr[i],HIGH);
    Serial.println(" SENSOR ON");
  }
  else{
    for(int i=0; i<ledsize; i++)
      digitalWrite(ledArr[i],LOW);
    Serial.println("");
  }
}



03. LED깜빡이기

 - 전체 깜빡이기 -> 위에서 아래로 -> 아래에서위로 -> 누적해서 아래로 -> 누적해서 위로 순서로

int ledArr[] = {11,10,9,3}; // 사용하는 LED번호
int delayTime = 250;      // 깜빡임시간 지정(1초 =1000)

int ledsize = sizeof(ledArr)/ sizeof(int);
void setup()
{
  for(int i=0; i<ledsize; i++)
  	pinMode(ledArr[i], OUTPUT);
}

void led_blink()
{
  for(int i=0; i<ledsize; i++){
    digitalWrite(ledArr[i], HIGH);
  }
  delay(delayTime);
  for(int i=0; i<ledsize; i++){
    digitalWrite(ledArr[i], LOW);
  }
  delay(delayTime);
}

void led_up2dn()
{
  for(int i=0; i<ledsize; i++){
   digitalWrite(ledArr[i], HIGH);
   delay(delayTime);
   digitalWrite(ledArr[i], LOW);
   delay(delayTime);
  }
}

void led_dn2up()
{
  for(int i=ledsize-1; i>=0; i--){
   digitalWrite(ledArr[i], HIGH);
   delay(delayTime);
   digitalWrite(ledArr[i], LOW);
   delay(delayTime);
  }
}

void led_weighted_up2dn()
{
  for(int i=0; i<ledsize; i++){
    digitalWrite(ledArr[i], HIGH);
    delay(delayTime);
  }
  for(int i=0; i<ledsize; i++){
    digitalWrite(ledArr[i], LOW);
  }
  delay(delayTime);
}

void led_weighted_dn2up()
{
  for(int i=ledsize; i>=0; i--){
    digitalWrite(ledArr[i], HIGH);
    delay(delayTime);
  }
  for(int i=0; i<ledsize; i++){
    digitalWrite(ledArr[i], LOW);
  }
  delay(delayTime);
}

void loop()
{
  led_blink();
  led_blink();
  led_up2dn();
  led_dn2up();
  led_weighted_up2dn();
  led_weighted_dn2up();
}

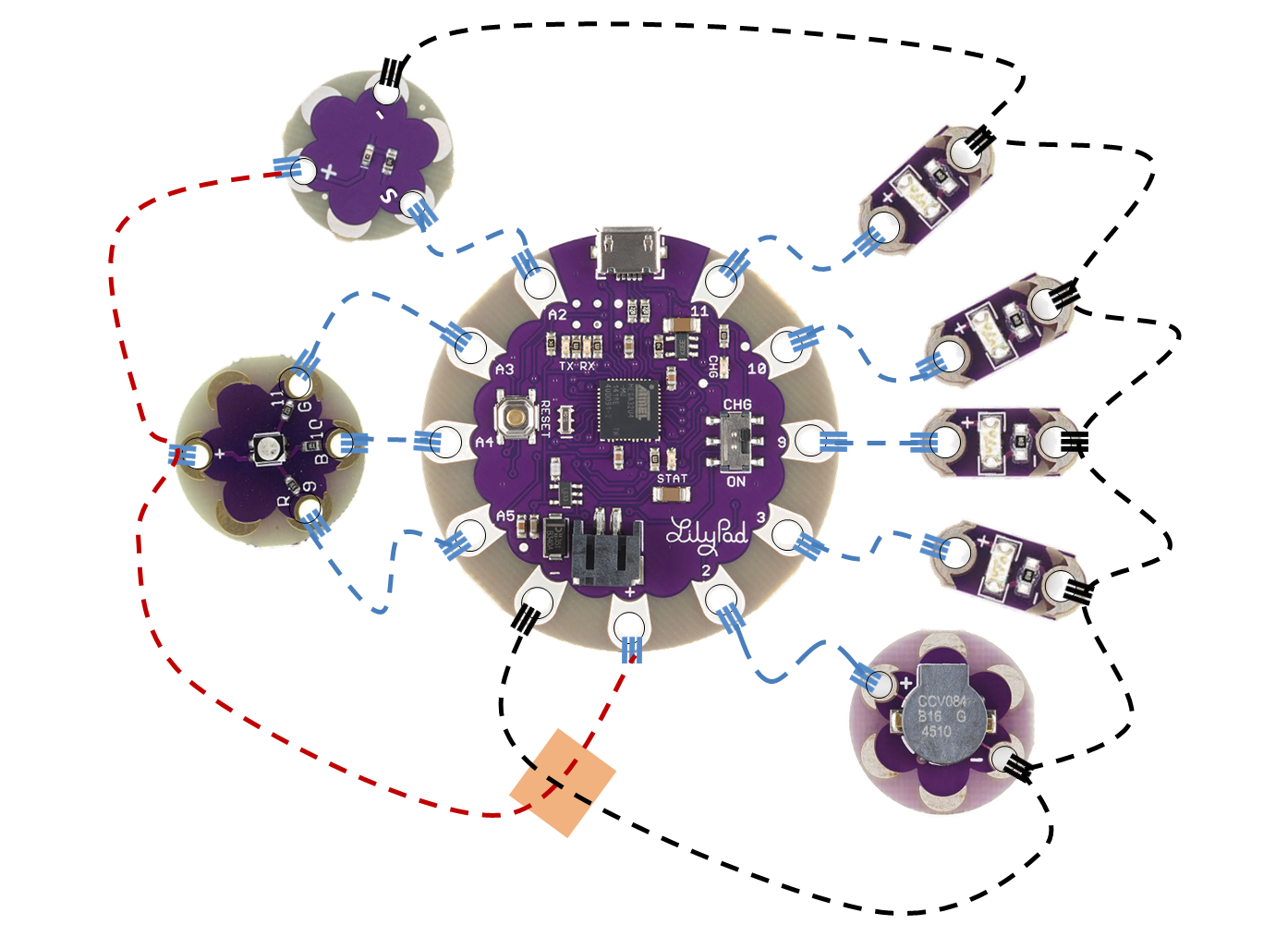

02. 최종 회로 구성

위의 주황색 영역에 천을 덧붙여서 실이 서로 겹치지 않게

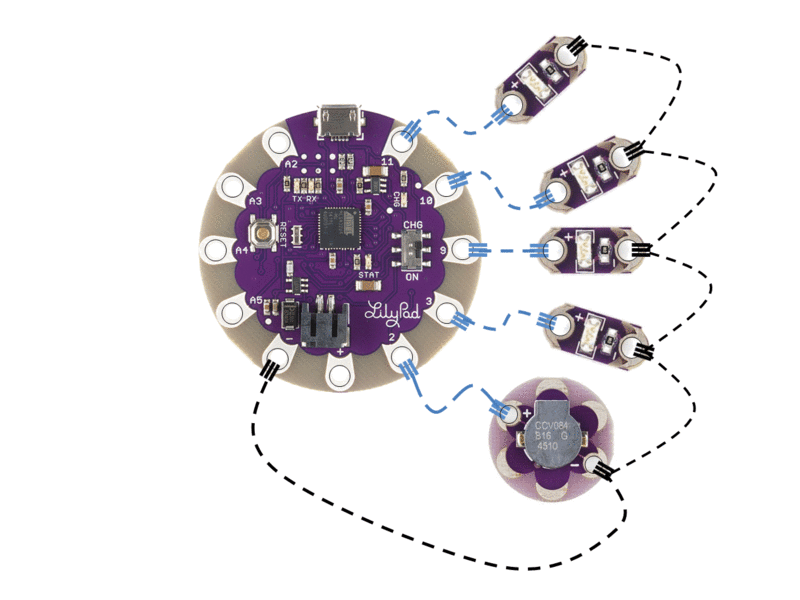

01. 회로꾸미기- 시작

'Embedded > Arduino' 카테고리의 다른 글

Arduino-v211019  (0) 2021.10.19
Arduino-v211018  (0) 2021.10.18
LilyPad - Final  (0) 2021.07.15
LilyPad - Buzzer Test  (0) 2021.07.15
Arduino - PWM(v0714)  (0) 2021.07.14

'Embedded/Arduino' Related Articles

티스토리툴바
